Continuity Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION .)

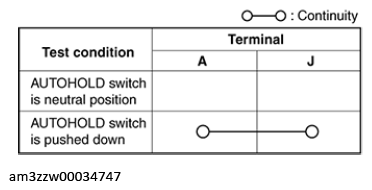

  3. Verify that the continuity is as indicated in the table.

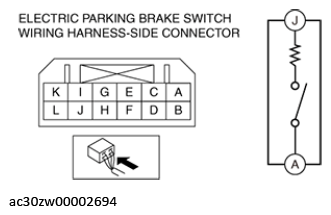

    G13176263Courtesy of MAZDA MOTORS CORP.
    G13176264Courtesy of MAZDA MOTORS CORP.
