Active driving display setting

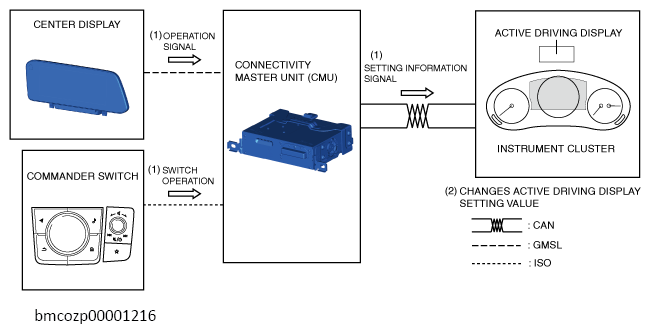

- When an operation signal is received/switch operation is detected (1), the CMU sends (1) a setting information signal to the instrument cluster based on the information from the user operations.
- The instrument cluster changes (2) the setting value of the active driving display based on the setting information signal.
 Courtesy of MAZDA MOTORS CORP.
|
