Steering Switch: Structure/Construction

The steering switch is located on the spoke of the steering wheel.
The resistance is built into each switch.

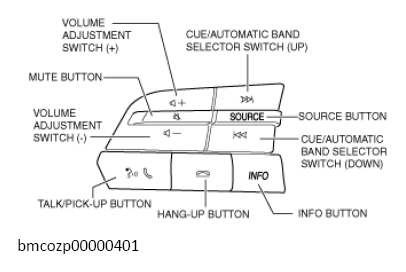

The steering switch consists of the following buttons and switches.
- Volume adjustment switch (+) and (-)
- Cue/automatic band selector (up) and (down)
- INFO button
- Talk button
- Pick-up button
- Hang-up button
Courtesy of MAZDA MOTORS CORP.
