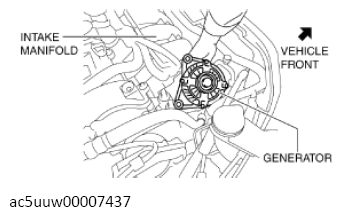

Generator Removal Note
- Fully loosen the generator lower bolt and pull it outward until it contacts the body frame.
NOTE:
- The generator can be removed without fully removing the lower bolt from the engine.
- Remove the generator upper bolt.
- Remove the generator together with the lower bolt from the engine.
- Remove the generator from above the engine compartment.
 Courtesy of MAZDA MOTORS CORP.
|
