Notification And Warning Speaker Inspection

  1. Connect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the notification and warning speaker. (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION .)

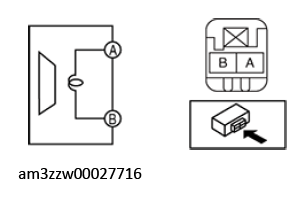

  3. Inspect the resistance between tweeter terminals A and B.

    Notification and warning speaker resistance

    3.4-4.6 ohms

    G13179970Courtesy of MAZDA MOTORS CORP.
