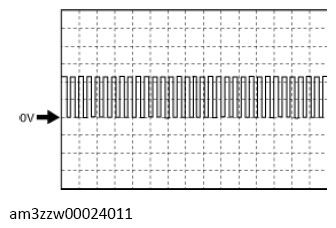

Wave pattern (reference)
WARNING: This page is about a different variant/trim than selected.
 Courtesy of MAZDA MOTORS CORP.
|
Oscilloscope setting
- 2 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
 Courtesy of MAZDA MOTORS CORP.
|
Oscilloscope setting
- 2 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
- Racing (Engine speed: 2, 000 rpm)
