Electrical System (Us)]: Terminals: Replacement

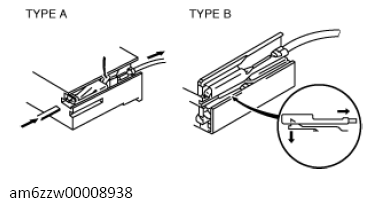

• Use the appropriate tools to remove a terminal as shown. When installing a terminal, be sure to insert it until it locks securely.
• Insert a thin piece of metal from the terminal side of the connector and with the terminal locking tab pressed down, pull the terminal out from the connector.

Courtesy of MAZDA MOTORS CORP.

Sensors, Switches, and Relays

• Handle sensors, switches, and relays carefully. Do not drop them or strike them against other objects.

Courtesy of MAZDA MOTORS CORP.
