360° View Monitor System Aiming (Batch Aiming) Procedure: Notes

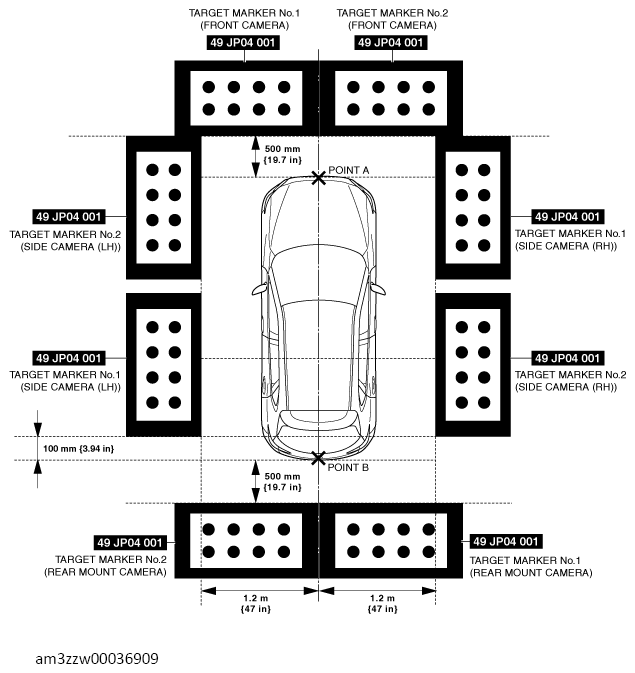

- Position the SSTs at the positions shown in the figure.
- Connect the M-MDS to the DLC-2.
- Close all the doors (front door, rear door) and the trunk lid (4SD)/liftgate (5HB).
- Verify that the outer mirrors are unfolded.
- Operate the electric parking brake.
- Shift the selector lever to the P position. (ATX)
- Shift the shift lever to the neutral position. (MTX)
- Connect the M-MDS to the DLC-2.
- Switch the ignition ON (engine off).
- Activate the M-MDS and perform the following procedure.
- Press [Start] to start the vehicle identification.
- Press the [Toolbox] tab.
- Press the [Work Support] icon.
- Press [i-ACTIVSENSE].
- Press [Static aiming].
- Press [Run] for [Static aiming for 360° View Monitor System].
- Select [All Camera Aiming] and press [Next].
- Verify that there are 4 sets (8 sheets) of the SST (49 JP04 001) and press [Next].
- Confirm the aiming procedure from Step (10) to Step 10.
- Verify that the SSTs (49 JP04 001) are placed in the positions shown in Step 1 and press [Next].
- Verify that the ignition is switched ON (engine off) and press [Next].
- Verify the M-MDS display.
- If [Procedure completed successfully] is displayed
- The 360° view monitor system aiming is completed. Perform the 360° view monitor system screen display verification procedure. (See 360° VIEW MONITOR SYSTEM SCREEN DISPLAY VERIFICATION PROCEDURE .)
- If [Procedure not completed successfully] is displayed.
- Perform an inspection according to the following table for the error code procedure.
- If an error code other than the error codes in the following table is displayed, verify the following and perform the 360° view monitor system aiming again if there is no malfunction, as there could be a communication error between the 360° view monitor unit and the diagnostic tester.
- Is the battery positive voltage for the vehicle 8 V or more?
- Is the ignition switched to ACC or ON (engine off or on)?
- If [Procedure completed successfully] is displayed
| Error code | Detection Condition |
|---|---|
| 03 | Target marker No. 1 of rear mount camera is not detected |
| 04 | Target marker No. 2 of rear mount camera is not detected |
| 06 | Target marker No. 1 of side camera (LH) is not detected |
| 07 | Target marker No. 2 of side camera (LH) is not detected |
| 09 | Target marker No. 1 of front camera is not detected |
| 0A | Target marker No. 2 of front camera is not detected |
| 0C | Target marker No. 1 of side camera (RH) is not detected |
| 0D | Target marker No. 2 of side camera (RH) is not detected |
| 10 | Input vehicle value exceeds specification |
| 12 | Because the following aiming implementation conditions are not met, the aiming is not completed.
|
| 15 | Aiming is not possible due to malfunction in 360° view monitor control module |
| 16 | 360° view monitor control module cannot receive rear mount camera images |
| 17 | 360° view monitor control module cannot receive side camera (LH) images |
| 18 | 360° view monitor control module cannot receive front camera images |
| 19 | 360° view monitor control module cannot receive side camera (RH) images |
| 1A | Power supply to camera insufficient |
