DTC U0320-00: EPS Control Module Error: Outline
DTC U0320:00 (PCM, VINs 7, L, M) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
EPS control module error |
| Detection condition |
- When any of the following conditions is met:

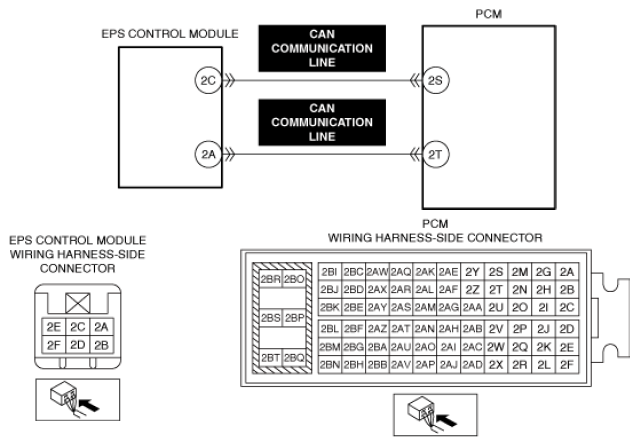

- CAN communication line malfunction between EPS control module and PCM
- EPS control module internal malfunction
|
| Fail-safe |
|
| Possible cause |
- CAN drive error (EPS control module or PCM)
- CAN communication line malfunction between EPS control module and PCM
- EPS control module connector or terminals malfunction
- PCM connector or terminals malfunction
- EPS control module malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
