Mode 03 (Variable Valve Timing, A/F Sensor, HO2S and TWC Repair Verification Drive Mode)
- Start the engine and warm it up completely.
- Verify all accessory loads (A/C, headlights, blower fan, rear window defogger) are off.

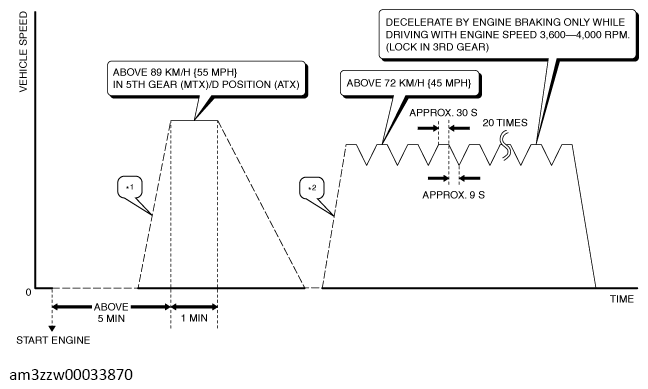

- Drive the vehicle as shown in the graph.
*1: MTX: accelerate in 5th gear. (accelerate to 89 km/h {55 mph}within 20 s.)/ATX: accelerate in D position. (accelerate to 89 km/h {55 mph}within 20 s.)
*2: Accelerate in 3rd gear. (accelerate to 72 km/h {45 mph}within 15 s.)
- To verify the completion of the drive mode, stop the vehicle and display the [Mode 1 Powertrain Data] of the ON-BOARD DIAGNOSTIC (OBD) TEST MODES using the M-MDS.
(See ON-BOARD DIAGNOSTIC (OBD) TEST MODES .)
- If the drive mode has been completed, [***RDY] (each system completed) of the PID [***SUP] (with/without support for each system monitor) item indicating YES changes from NO to YES.
- If the drive mode has not been completed, switch the ignition off and repeat the procedure from Step 3 again.
- If the drive mode has been completed, [***RDY] (each system completed) of the PID [***SUP] (with/without support for each system monitor) item indicating YES changes from NO to YES.
- Access the diagnostic monitoring test results menu of generic OBD-II functions to verify the monitor results.
(See ON-BOARD DIAGNOSTIC (OBD) TEST MODES .)
- If detected values are not within specification, repair has not been completed.
- Verify that no DTCs are displayed.
