Rear Window Defogger/Heated Outer Mirror/Windshield Wiper De-ICER System Inspection
>>
System wiring diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

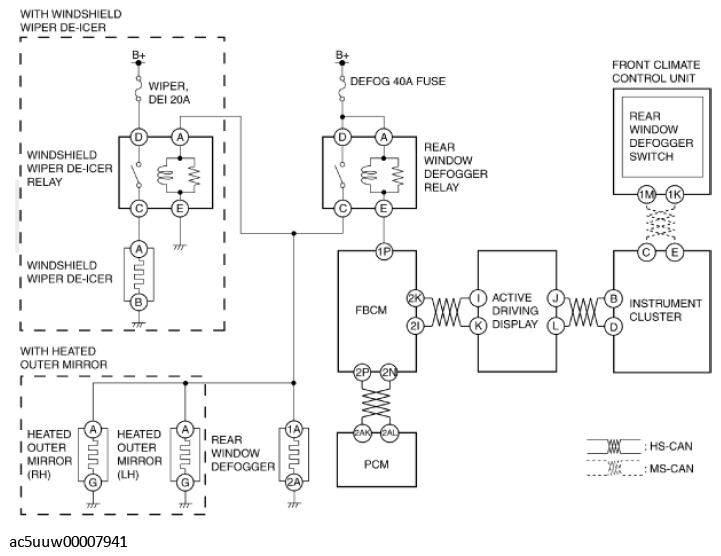

System wiring diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
