DTC B10A3-87: Communication Error With Swivel Actuator (LH): Notes
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DTC B10A3:87 ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Communication Error With Swivel Actuator (LH) |
| Detection condition |
- The AFS control module detected communication error with the swivel actuator (LH) for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe |
- The swivel actuator (LH) is stopped at the position when the malfunction is determined.
- The swivel actuator (RH) is moved to the center, or the swivel actuators (LH) and (RH) are moved to the center.
- Control of the headlight auto leveling system is continued with the headlight leveling actuator positioned -0.6° from where the malfunction is determined.
|
| Possible cause |
- Front combination light (LH) connector or terminal malfunction
- AFS control module connector or terminal malfunction

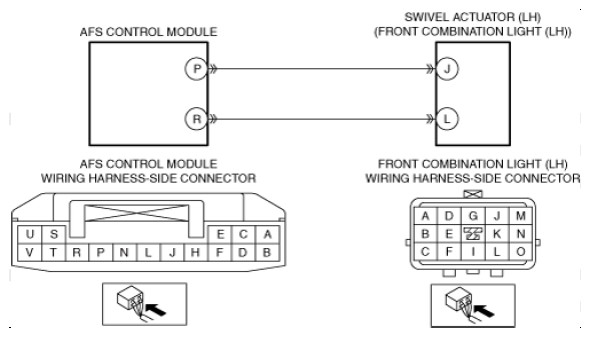

- Short to ground in wiring harness between the following terminals:
- AFS control module terminal P and front combination light (LH) terminal J
- AFS control module terminal R and front combination light (LH) terminal L
- Short to power supply in wiring harness between the following terminals:
- AFS control module terminal P and front combination light (LH) terminal J
- AFS control module terminal R and front combination light (LH) terminal L
- Open circuit in wiring harness between the following terminals:
- AFS control module terminal P and front combination light (LH) terminal J
- AFS control module terminal R and front combination light (LH) terminal L
- Swivel actuator (LH) malfunction
- AFS control module malfunction
|
|
|
