DTC B1D01-13: Headlight (RH) Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DTC B1D01:13 ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Headlight (RH) Circuit Malfunction |
| Detection condition |
- The AFS control module detected an open circuit in the headlight (RH) circuit during the headlight LO on control for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe |
- Control of the AFS is continued.
- Control of the headlight auto leveling system is continued.
|
| Possible cause |
- DTCs are stored in the front body control module (FBCM).
- Headlight LO (RH) circuit malfunction
- Front combination light (RH) connector or terminal malfunction
- AFS control module connector or terminal malfunction

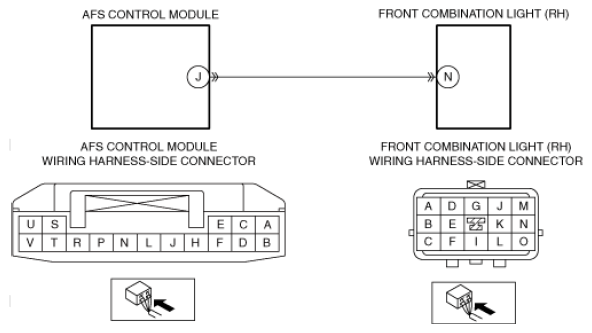

- Short to ground in wiring harness between AFS control module terminal J and front combination light (RH) terminal N
- Open circuit in wiring harness between AFS control module terminal J and front combination light (RH) terminal N
- Front combination light (RH) malfunction
- AFS control module malfunction
|
|
|
