DTC B13FE-14: Headlight Lo Relay No. 2 Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DTC B13FE:14 (FRONT BODY CONTROL MODULE (FBCM)) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Headlight LO Relay No. 2 Circuit Malfunction |
| Detection condition |
- Front body control module (FBCM) detects an open circuit or short to ground in the headlight LO relay No. 2 circuit with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Headlight LO relay No. 2 malfunction
- Front body control module (FBCM) connector or terminal malfunction

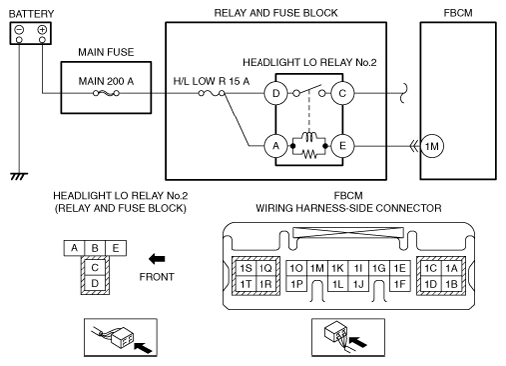

- Short to ground in the wiring harness between headlight LO relay No. 2 terminal E and front body control module (FBCM) terminal 1M
- Open circuit in the wiring harness between headlight LO relay No. 2 terminal E and front body control module (FBCM) terminal 1M
- Front body control module (FBCM) malfunction
|
|
|
