DTC B1C84-14: Rear Window Defogger Relay Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DTC B1C84:14 (FRONT BODY CONTROL MODULE (FBCM)) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Rear Window Defogger Relay Circuit Malfunction |
| Detection condition |
- Front body control module (FBCM) detects an open circuit or short to ground in the rear window defogger relay circuit with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Rear window defogger relay malfunction
- Front body control module (FBCM) connector or terminal malfunction

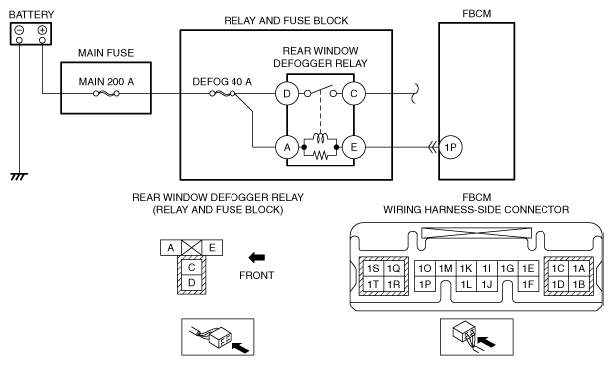

- Short to ground in wiring harness between rear window defogger relay terminal E and front body control module (FBCM) terminal 1P
- Open circuit in wiring harness between rear window defogger relay terminal E and front body control module (FBCM) terminal 1P
- Front body control module (FBCM) malfunction
|
|
|
