Solar Radiation Sensor Installation Note

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

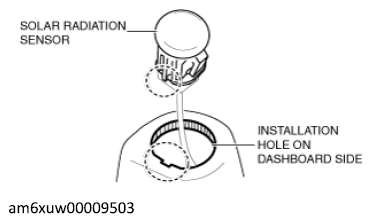

  1. Align the shape of the solar radiation sensor with the shape of the installation hole on the dashboard side, and install as shown in the figure below.
    Fig 1: Solar Radiation Sensor
    G12233676Courtesy of MAZDA MOTORS CORP.
