Air Cleaner Element Removal/Installation: Notes

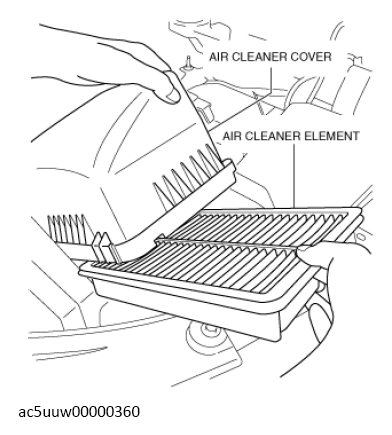

  1. Remove the air cleaner element as shown in the figure.
    G13149367Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal. (See AIR CLEANER COVER INSTALLATION NOTE .)
