Intake-Air System Removal/Installation: Notes
WARNING:
- A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

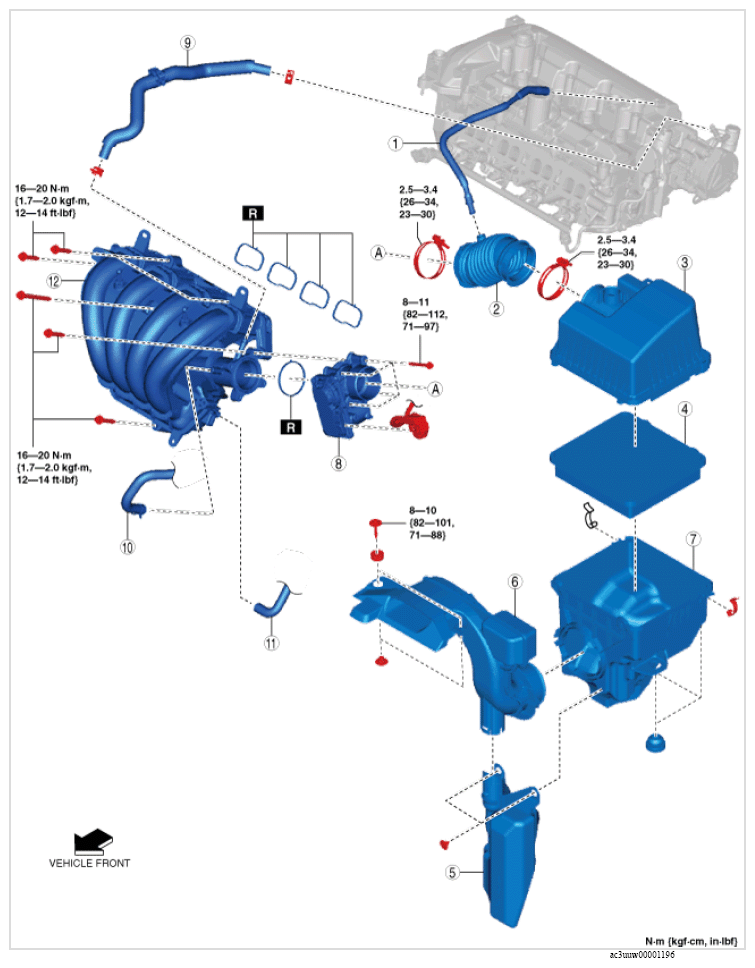

COMPONENT DESCRIPTION
| 1 | Ventilation hose (See Ventilation Hose Installation Note .) |
| 2 | Air hose (See Air Hose Installation Note ) |
| 3 | Air cleaner cover (See Air Cleaner Cover Installation Note ) |
| 4 | Air cleaner element |
| 5 | Resonance chamber (See Resonance Chamber Removal Note .) |
| 6 | Fresh-air duct (See Fresh-air Duct Removal Note .) |
| 7 | Air cleaner case (See Air Cleaner Case Installation Note .) |
| 8 | Throttle body |
| 9 | Vacuum hose (See Vacuum Hose Removal Note .) (See Vacuum Hose Installation Note .) |
| 10 | Evaporative hose (See Evaporative Hose Installation Note ) |
| 11 | PCV hose |
| 12 | Intake manifold (See Intake Manifold Removal Note ) (See Intake Manifold Installation Note ) |
