Console Side Panel Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

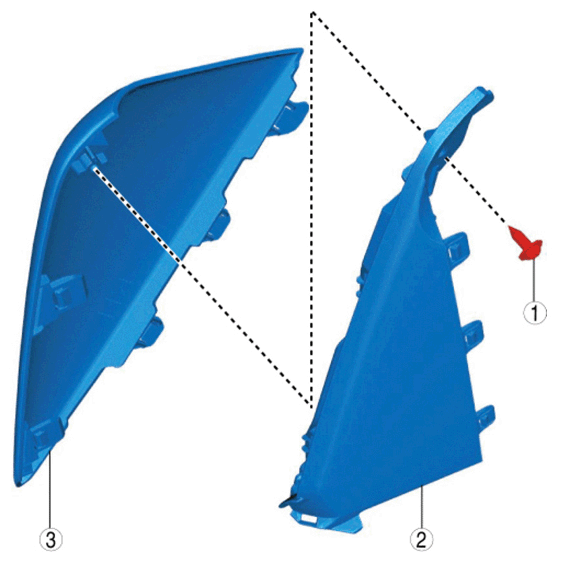

Fig 1: Console Side Panel No. 1 And 2 With Screws

Courtesy of ABLE BODY CORP.

COMPONENT DESCRIPTION

1	Screw
2	Console side panel No. 1 (See Console Side Panel No. 1 Removal Note .)
3	Console side panel No. 2

Assemble in the reverse order of disassembly.
