Switch Panel Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Open the glove compartment.
  3. Remove the center panel. (Refer to CENTER PANEL REMOVAL/INSTALLATION .)
  4. Remove the screw.

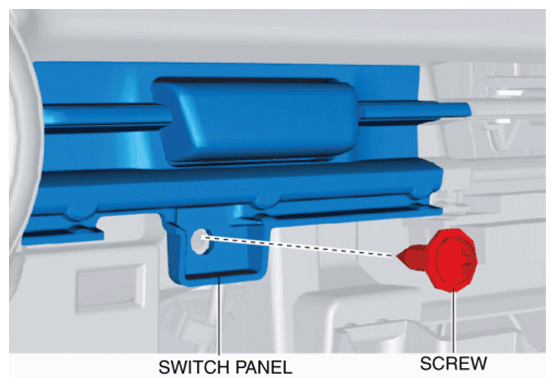

    Fig 1: Identifying Switch Panel And Screw
    G10914719Courtesy of ABLE BODY CORP.
  5. Move the remover tool in the order of arrows (1) and (2) shown in the figure and detach the clips from the dashboard.

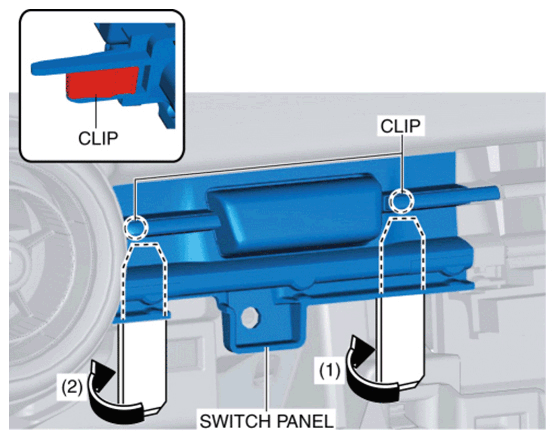

    Fig 2: Detaching Clips From Dashboard
    G10914720Courtesy of ABLE BODY CORP.
  6. Disconnect the hazard warning switch connector and remove the switch panel.
  7. When replacing the switch panel, remove the hazard warning switch. (Refer to HAZARD WARNING SWITCH REMOVAL/INSTALLATION .)
  8. Install in the reverse order of removal.
