Trunk Board Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk board in the direction of arrow shown in the figure.

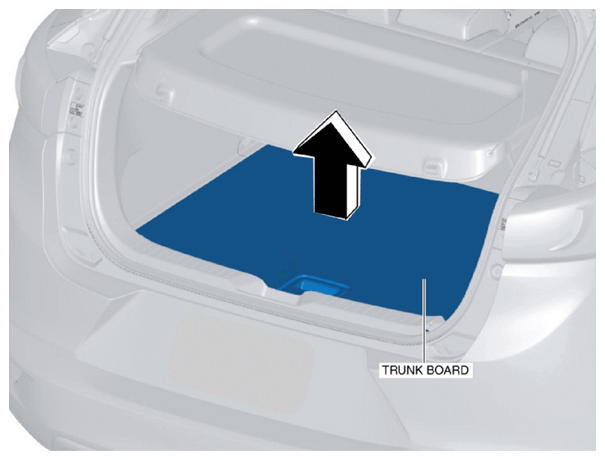

    Fig 1: Removing Trunk Board
    G10914810Courtesy of ABLE BODY CORP.
  2. Install in the reverse order of removal.
