Connectivity Master Unit (CMU) Disassembly/Assembly: Notes

Disassemble in the order indicated in the table.

Courtesy of MAZDA MOTORS CORP.

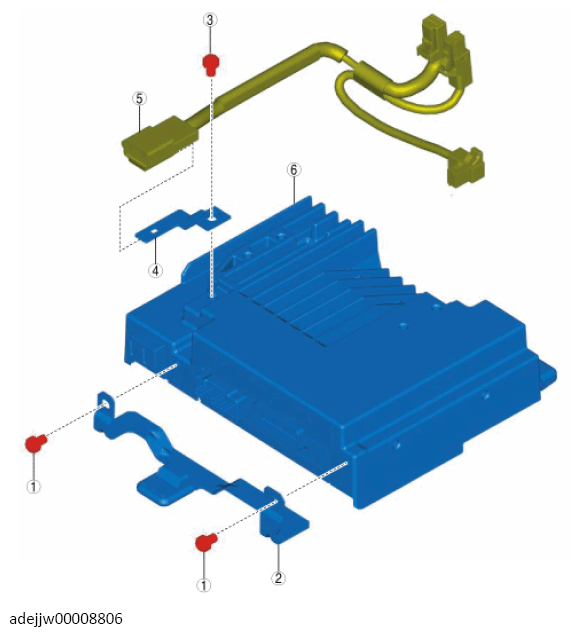

COMPONENT DESCRIPTION

1	Screw A
2	Bracket A
3	Screw B
4	Bracket B
5	Short-cord (See Short-cord Assembly Note .)
6	Connectivity master unit (CMU)
