Joint Hose Installation Note

  1. Connect the joint hose to the fuel-filler pipe as shown in the figure.

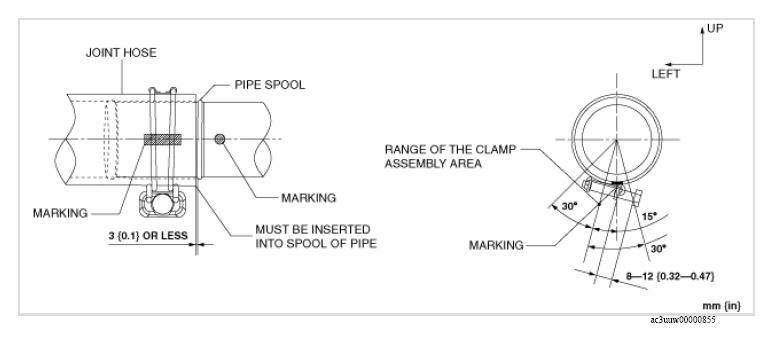

2WD

G13149500Courtesy of MAZDA MOTORS CORP.

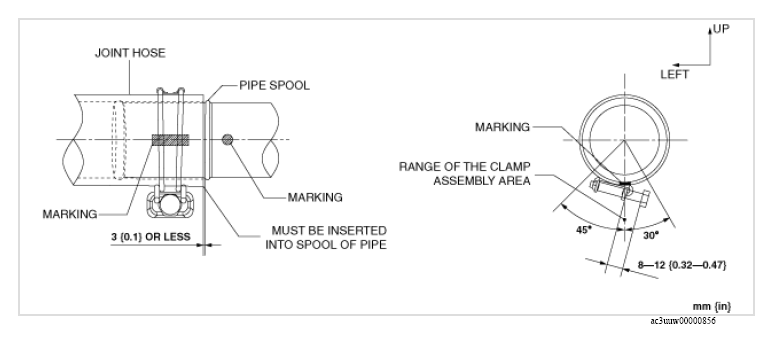

AWD

G13149501Courtesy of MAZDA MOTORS CORP.
