Coupling Component Installation Note
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Clean away the remaining silicone sealant before applying new silicone sealant.
- Install the coupling component before the applied silicone sealant starts to harden.
- Add differential oil after the silicone sealant hardens.

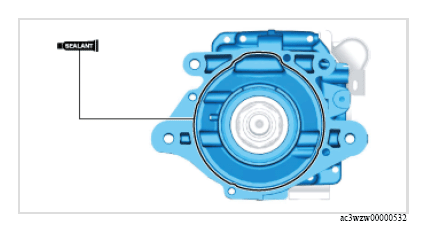

- Apply a thin layer of silicone sealant TB1217C or equivalent to the contact surfaces of the coupling component and the rear differential.
- Install the coupling component to the rear differential.
Tightening torque
23-26 N.m {2.4-2.6 kgf.m, 17-19 ft.lbf}
- If the coupling component is replaced, write the characteristic value of the new coupling component to the AWD control module. (See COUPLING COMPONENT CALIBRATION DATA WRITING .)
