Disassemble in the order indicated in the table.

CAUTION:

If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.

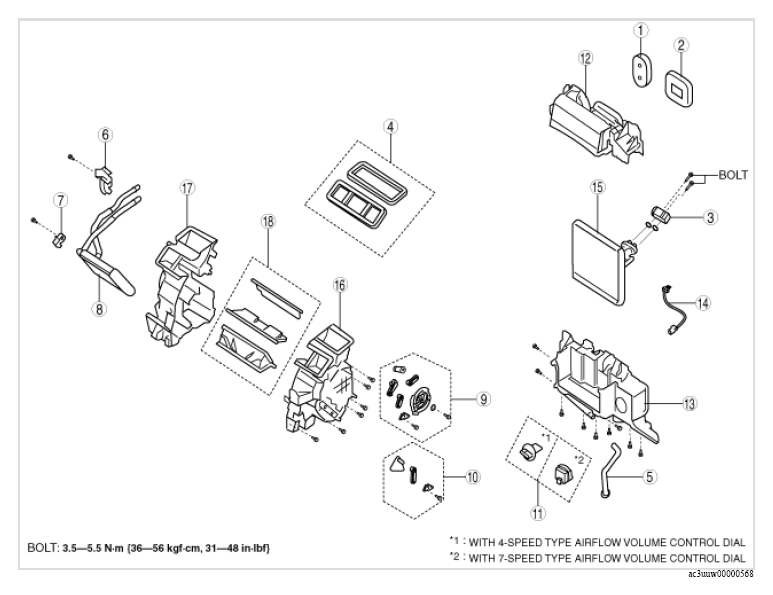

Fig 1: Exploded View Of A/C Unit With Torque Specification

Courtesy of MAZDA MOTORS CORP.

x: Applicable-: Not applicable

PART DESCRIPTION

Step	Part name	Disassembly/assembly of main parts
Step	Part name	Heater core	Evaporator temperature sensor	Evaporator
1	Polyurethane foam A	x	x	x
2	Polyurethane foam B	-	x	x
3	Expansion valve	-	-	x
4	Adhesive polyurethane	-	-	-
5	Drain hose	-	-	-
6	Plate A	x	x	x
7	Plate B	x	x	x
8	Heater core	x	x	x
9	Airflow mode link set	-	-	-
10	Air mix link	-	-	-
11	Resistor (with 4-speed type airflow volume control dial)	-	-	-
11	Blower fan controller (with 7-speed type airflow volume control dial)	-	-	-
12	A/C case A	-	x	x
13	A/C case B	-	x	x
14	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR ASSEMBLY NOTE .)	-	x	x
15	Evaporator	-	-	x
16	A/C case C	-	-	-
17	A/C case D	-	-	-
18	Door damper	-	-	-
