With 360° View Monitor System: Outline
DTC B14F7:16 [VEHICLE CONTROL MODULE (US)] DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |

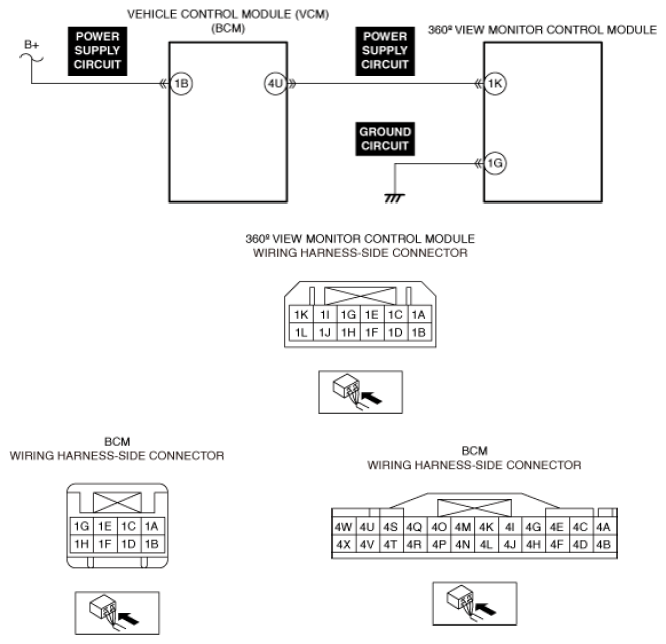

360° view monitor control module low power supply voltage input |
| Detection condition |
- The vehicle control module (VCM) detects that the 360° view monitor control module power supply circuit voltage was 8 V or less for 15 s.
|
| Fail-safe |
(See DTC TABLE [VEHICLE CONTROL MODULE (US)]
.) |
| Possible cause |
NOTE:
- The 360° view monitor control module is supplied power via the vehicle control module (VCM).
- DTCs are stored in the PCM.
- Battery malfunction
- Malfunction in generator
- Body control module (BCM) connector or terminal malfunction
- Short to ground or open circuit in vehicle control module (VCM) power supply circuit
- 360° view monitor control module connector or terminal malfunction
- 360° view monitor control module ground circuit malfunction
- 360° view monitor control module power supply circuit malfunction
- Power supply circuit malfunction
- Vehicle control module (VCM) internal malfunction
- 360° view monitor control module malfunction
- Vehicle control module (VCM) malfunction (built into body control module (BCM))
|
