Without 360° View Monitor System and Parking Assist System: Outline
DTC U3000:1C [VEHICLE CONTROL MODULE] DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |

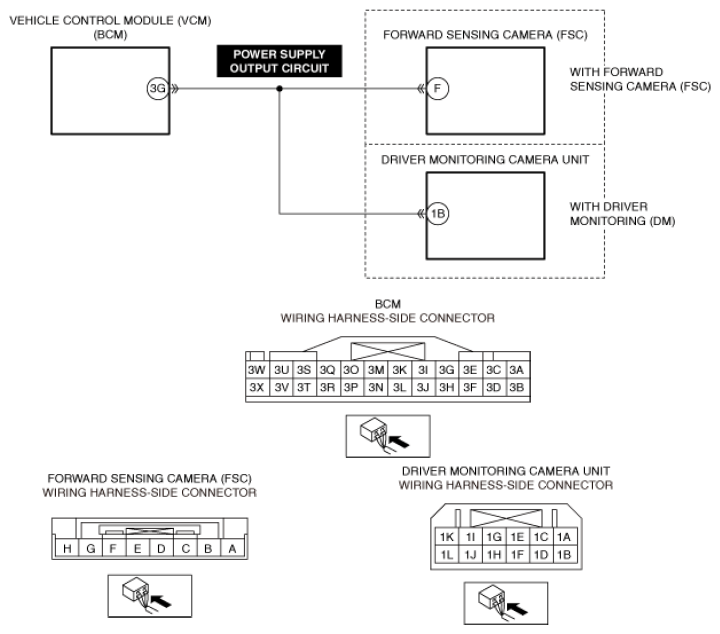

Malfunction in vehicle control module (VCM) power supply output circuit |
| Detection condition |
- The vehicle control module (VCM) detects a malfunction in the vehicle control module (VCM) power supply output circuit for 10 s.
|
| Fail-safe |
(See DTC TABLE [VEHICLE CONTROL MODULE (US)] .) |
| Possible cause |
- The vehicle control module (VCM) stores DTCs.
- Vehicle control module (VCM) low power supply voltage input
- Vehicle control module (VCM) high power voltage input
- Body control module (BCM) connector or terminal malfunction
- Forward sensing camera (FSC) connector or terminal malfunction (with forward sensing camera (FSC))
- Driver monitoring camera unit connector or terminal malfunction (with driver monitoring (DM))
- Short to ground in power supply output circuit
- Short to power supply in power supply output circuit
- Open circuit in power supply output circuit
- Forward sensing camera (FSC) malfunction (with forward sensing camera (FSC))
- Driver monitoring camera unit malfunction (with driver monitoring (DM))
- Vehicle control module (VCM) malfunction (built into body control module (BCM))
|
 Courtesy of MAZDA MOTORS CORP.
|
