Blind Spot Monitoring (BSM) Warning Indicator Light Inspection
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
- Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
- Outer mirror glass (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)

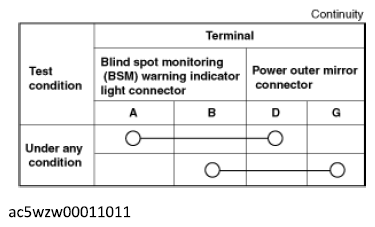

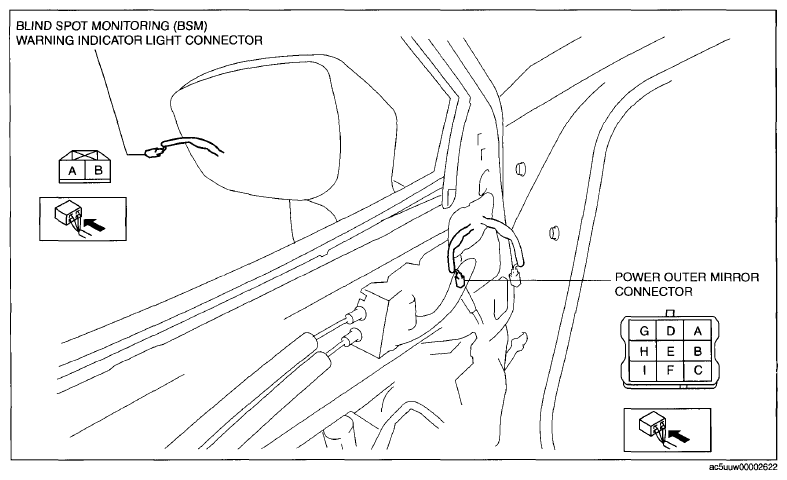

- Verify that the continuity between blind spot monitoring (BSM) warning indicator light connector terminals is as indicated in the table.
- If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
