Remote Handle Lever Removal/Installation: Notes
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Fold the rear seat back.
- Remove the following parts:
- Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
- Bass box (With Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .)
- Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
- Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
- Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
- Remove the remote handle lever from the trunk side trim.(See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

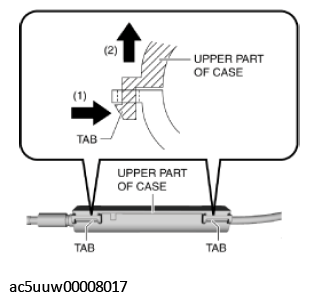

- Press the tab in the direction of arrow (1) shown in the figure to disengage it, and open the upper part of the case in the direction of arrow (2).
- Disconnect the remote cable.

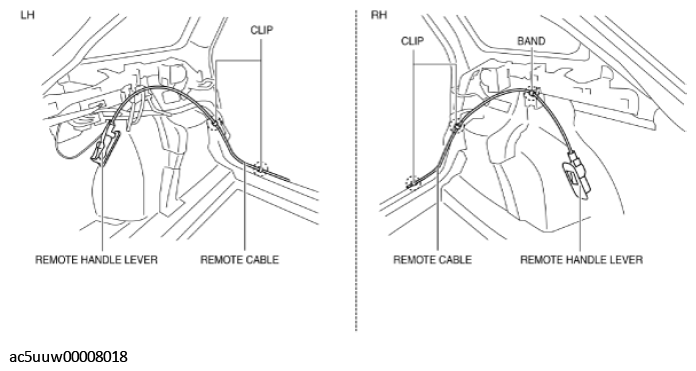

- Remove the remote cable on the remote handle lever side from the clip.
- Install in the reverse order of removal.
- Pull the remote handle lever and verify that the rear seat back is unlocked.
- If any of the rear seat backs does not unlock, or it is hard to unlock or lock, adjust the remote cable. (See Remote Cable Adjustment Procedure .)
