Connectivity Master Unit (CMU) Installation Note
WARNING:
This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
When installing a new connectivity master unit (CMU), affix the pad to the position shown in the figure.

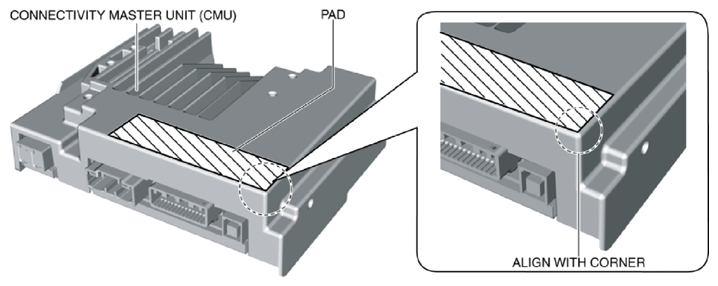

Fig 1: Installing Connectivity Master Unit
Courtesy of MAZDA MOTORS CORP.
