DTC B1455-23; Power Liftgate (PLG) Touch Sensor (RH) Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Power liftgate (PLG) touch sensor (RH) circuit malfunction |
| Detection condition |
- Power liftgate (PLG) control module detected a short circuit to ground in the power liftgate (PLG) touch sensor (RH) circuit for 5 min or more.
|
| Fail-safe |
- Stops the power liftgate (PLG) system operation.
|
| Possible cause |
- Power liftgate (PLG) touch sensor (RH) connector or terminal malfunction
- Power liftgate (PLG) control module connector or terminal malfunction

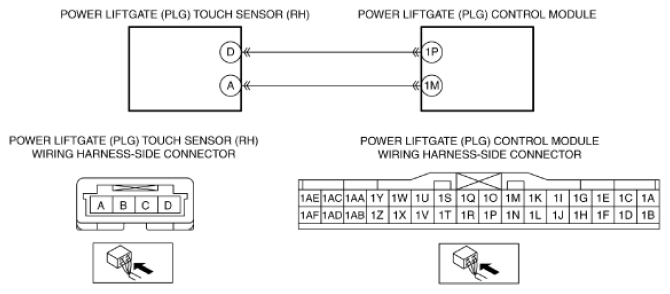

- Short to ground in wiring harness between power liftgate (PLG) touch sensor (RH) terminal D and power liftgate (PLG) control module terminal 1P
- Power liftgate (PLG) touch sensor (RH) malfunction
- Power liftgate (PLG) control module malfunction
|
|
|
