Section 43 (On-Board Diagnostic - Two-Step Deployment Control System)
>>
DTC Table [Two-Step Deployment Control System]
>>
Inspection for DTCs not shown in DTC table
>>
System wiring diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System wiring diagram
WARNING:
This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

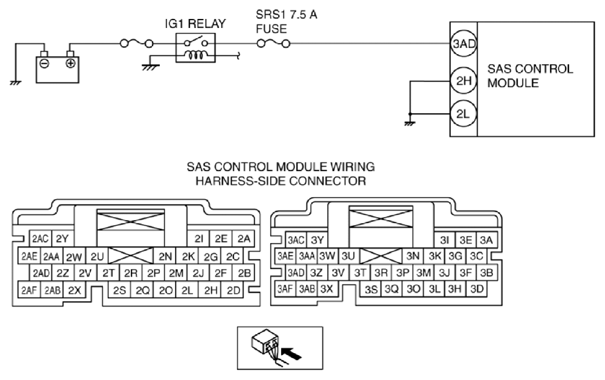

Fig 1: SAS Control Module System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
