Section 43 (On-Board Diagnostic - Two-Step Deployment Control System)
>>
On-Board Diagnostic Wiring Diagram [Two-Step Deployment Control System]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
On-Board Diagnostic Wiring Diagram [Two-Step Deployment Control System]
WARNING:
This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

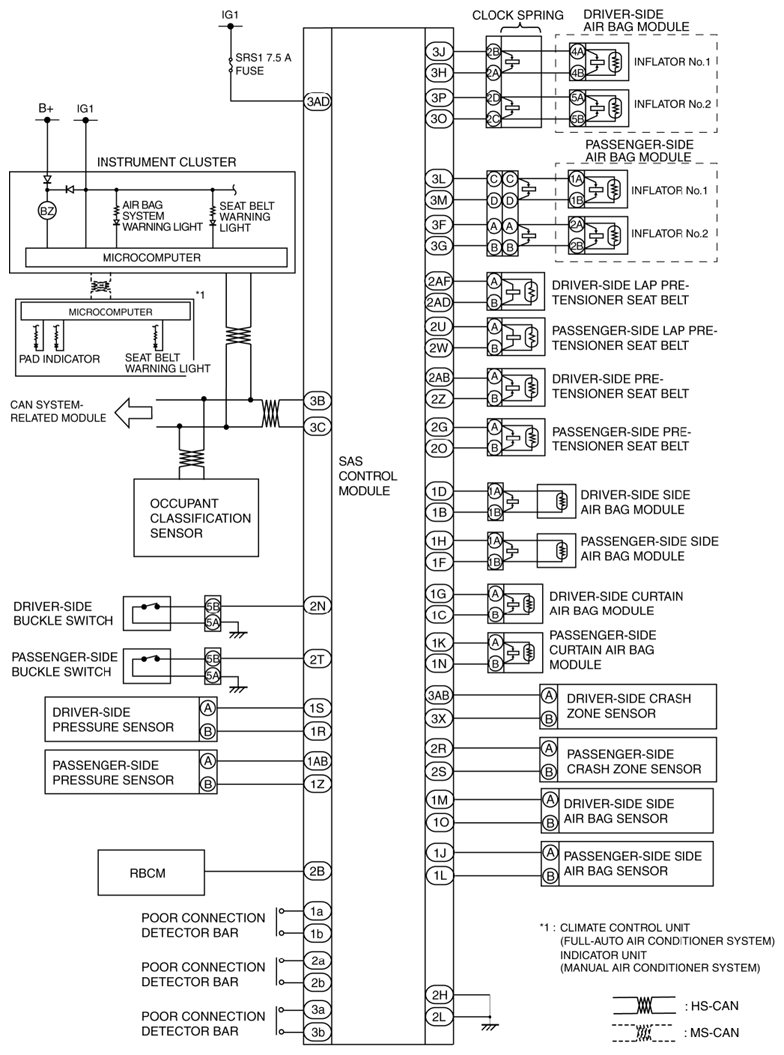

Fig 1: Two-Step Deployment Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.

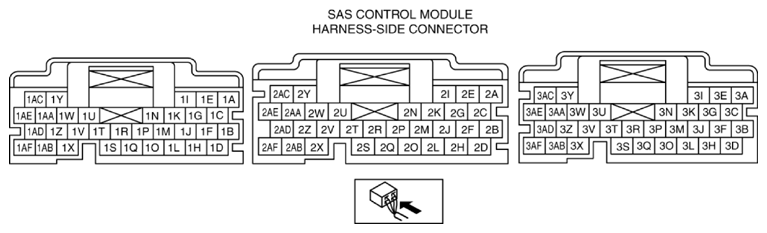

Fig 2: Identifying SAS Control Module Connector Terminals
Courtesy of MAZDA MOTORS CORP.
