Lock/Unlock Operation Not Possible Using Remote Transmitter: Notes
LOCK/UNLOCK OPERATION NOT POSSIBLE USING REMOTE TRANSMITTER DESCRIPTION AND POSSIBLE CAUSE
| Description |
LOCK/UNLOCK OPERATION NOT POSSIBLE USING REMOTE TRANSMITTER |
- The door lock/unlock operation using the remote transmitter button is not possible.
|
| Possible Causes |
- ROOM fuse malfunction or poor installation
- Remote transmitter battery power low
- Remote transmitter registration not completed correctly
- Keyless receiver malfunction
- Remote transmitter malfunction
- Faulty remote transmitter battery

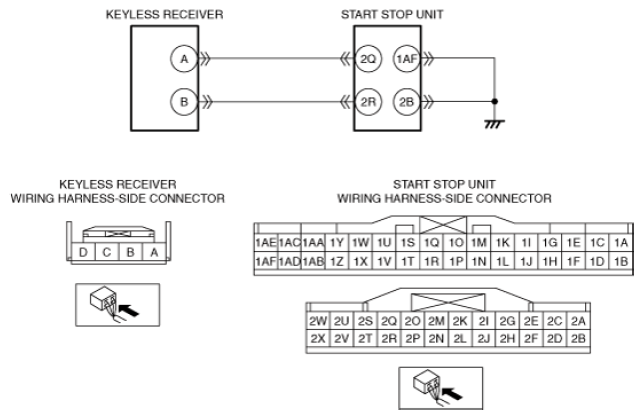

- Open circuit in wiring harness between the following terminals:
- Keyless receiver terminal A and start stop unit terminal 2Q
- Keyless receiver terminal B and start stop unit terminal 2R
- Start stop unit terminal 1AF and ground
- Start stop unit terminal 2B and ground
- Connector poor contact or terminal damage
- Customer's mis-operation or misunderstanding
- Effect of non-standard equipment (any control unit with built-in microcomputer such as radio set, mobile telephone, and TV)
|
 Courtesy of MAZDA MOTORS CORP.
|
