Push Button Start System Does Not Operate: Notes
PUSH BUTTON START SYSTEM DOES NOT OPERATE DESCRIPTION AND POSSIBLE CAUSE
| Description |
PUSH BUTTON START SYSTEM DOES NOT OPERATE |
- When the push button start is pressed, the ignition cannot be switched to ACC or ON (engine off).
|
| Possible Causes |

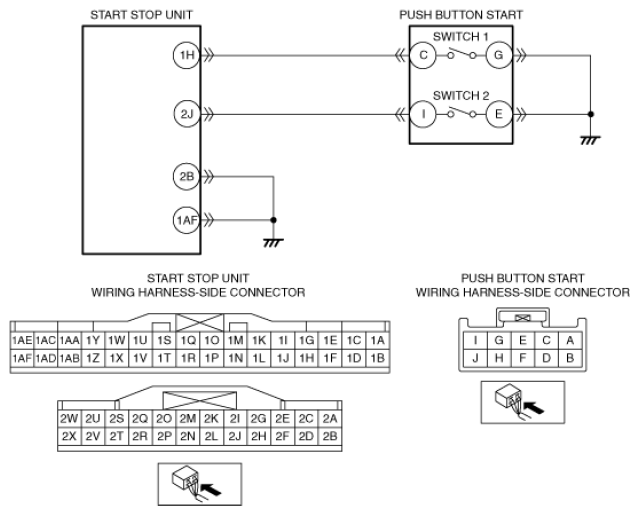

- Open circuit in wiring harness between the following terminals:
- Start stop unit terminal 1H and push button start terminal C
- Start stop unit terminal 2J and push button start terminal I
- Start stop unit terminal 1AF and ground
- Start stop unit terminal 2B and ground
|
 Courtesy of MAZDA MOTORS CORP.
|
