Driver-Side Door Glass Cannot Be Operated Manually Or Automatically: Notes
DRIVER-SIDE DOOR GLASS CANNOT BE OPERATED MANUALLY OR AUTOMATICALLY DESCRIPTION AND POSSIBLE CAUSE
| Description |
Driver-side door glass cannot be operated manually or automatically using power window main switch |
| Possible Causes |
- Power window main switch malfunction
- Power window motor malfunction
- Malfunction in power window main switch power supply circuit

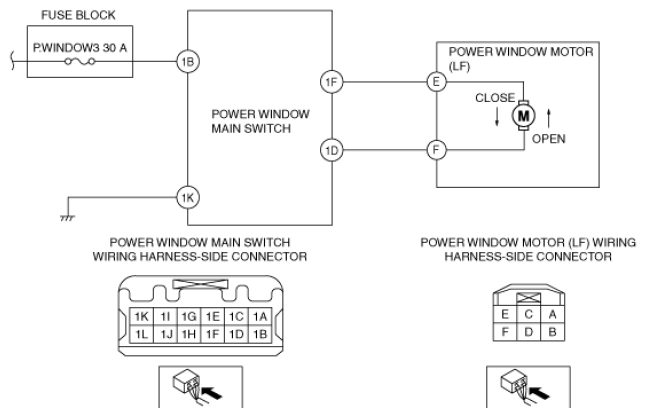

- Short to ground in wiring harness between P.WINDOW3 30A fuse and power window main switch terminal 1B
- P.WINDOW3 30A fuse malfunction
- Open circuit in wiring harness between P.WINDOW3 30A fuse and power window main switch terminal 1B
- Malfunction in wiring harness between power window main switch terminals and power window motor terminals
- Open circuit in wiring harness between power window main switch terminal 1F and power window motor terminal E
- Open circuit in wiring harness between power window main switch terminal 1D and power window motor terminal F
- Short to ground in wiring harness between power window main switch terminal 1F and power window motor terminal E
- Short to ground in wiring harness between power window main switch terminal 1D and power window motor terminal F
- Open circuit in wiring harness between power window main switch terminal 1K and body ground
- Connector poor contact or terminal damage
|
 Courtesy of MAZDA MOTORS CORP.
|
