DTC B1088-88; Lin Communication Error: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
LIN communication error |
| Detection condition |
- LIN bus communication line malfunction detected for 1 s or more
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Malfunction in LIN bus communication line

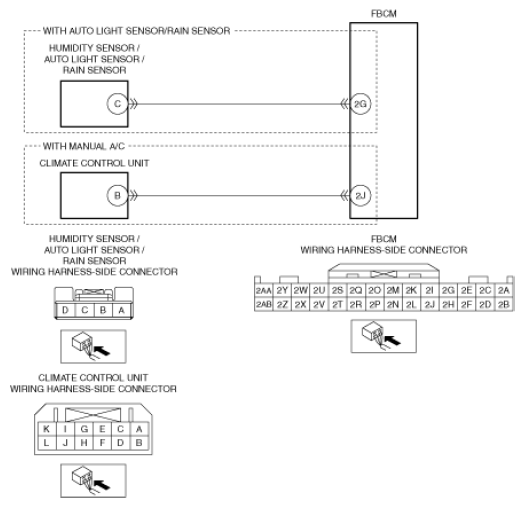

- Humidity sensor/auto light sensor/rain sensor terminal C-Front body control module (FBCM) terminal 2G (With humidity sensor/auto light sensor/rain sensor)
- Climate control unit terminal B-Front body control module (FBCM) terminal 2J (With manual A/C)
- Front body control module (FBCM) malfunction
|
|
|
