If Bluetooth®-enabled device is version 2.0

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Switch the ignition ON (engine off or on).
Select "Settings" from the home screen of the center display as shown in the figure.

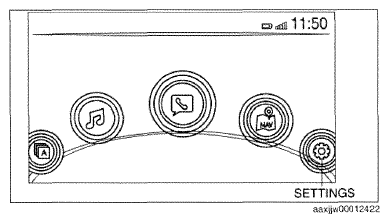

Fig 1: Screen Display - Bluetooth® Pairing Procedure
Courtesy of MAZDA MOTORS CORP.
Select the following on the center display.
1. [Devices]
2. [Bluetooth]
3. Bluetooth setting ON
4. [Add New Device]
Verify that the 4-digit pairing code (initial value "0000") is indicated in the center display.
Input the 4-digit pairing code indicated in the center display into the Bluetooth®-enabled device.
NOTE:
- After inputting the 4-digit pairing code, the connectivity master unit (CMU) initiates the pairing programming with the Bluetooth®-enabled device.
- Connection permission and permission to access the contact list may be necessary depending on the Bluetooth®-enabled device.
Verify that "Pairing complete Connection complete" is indicated in the center display.
