Daytime Running Light (DRL) System (Except Canada)

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Function	Initial setting	Setting contents	Control module
The daytime running light (DRL) system function can be set.	On (daytime running light (DRL) illumination)	Off (daytime running light (DRL) non-illumination)/On (daytime running light (DRL) illumination)	Front body control module (FBCM)

Perform the following procedure to change the daytime running light (DRL) illumination/non-illumination setting.
NOTE:
- Because each procedure needs to be completed within a predetermined period of time, refer to the following procedure before performing the set up work, and then verify the content of the work and the time limit.

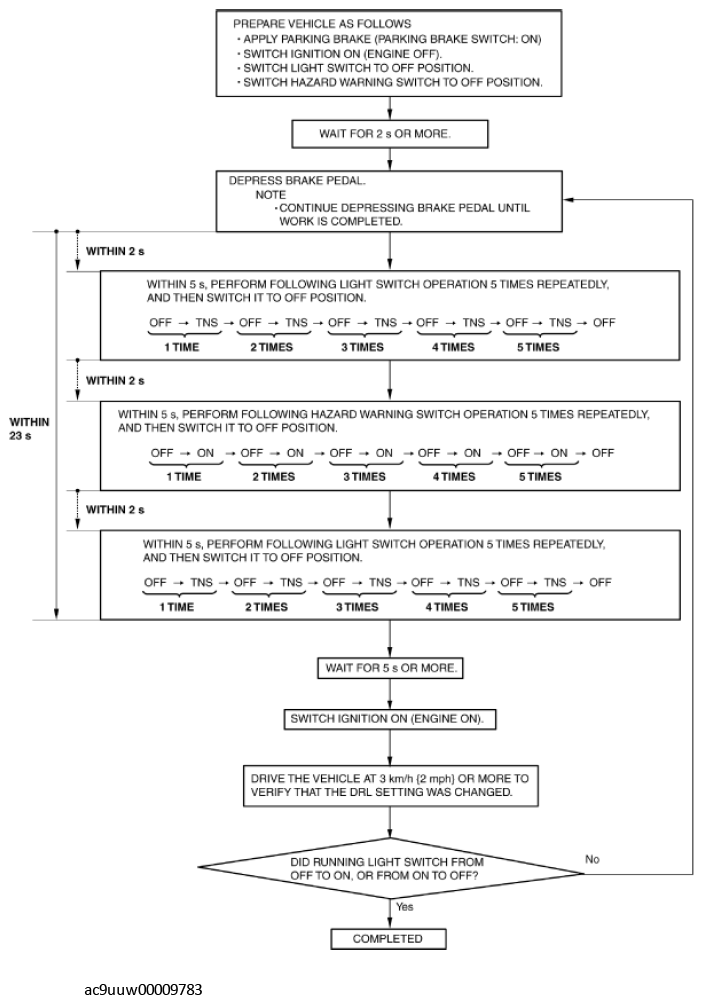

Fig 1: Lighting System Personalization Features Setting Procedure Chart

Courtesy of MAZDA MOTORS CORP.
