Air Intake Link Installation Note
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

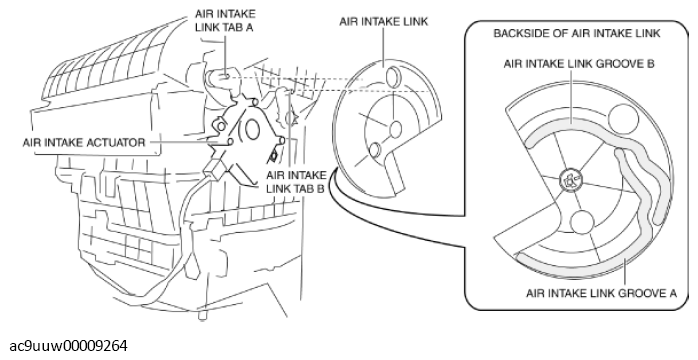

- When installing the air intake link, verify that air intake link tab A is installed in air intake link groove A and air intake link tab B is installed in air intake link groove B.
Courtesy of MAZDA MOTORS CORP.
