Power Outer Mirror Installation Note

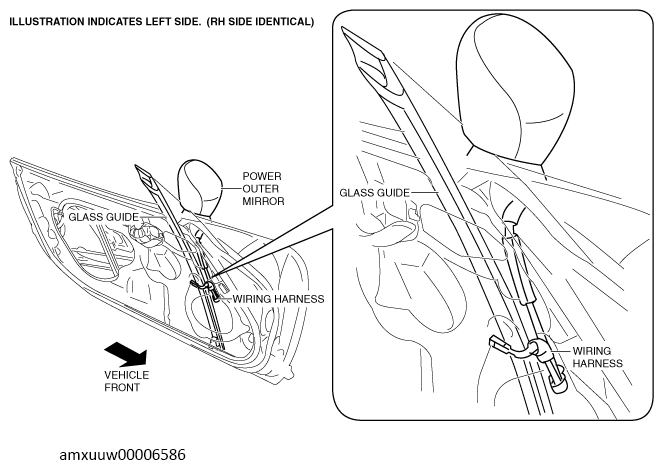

If the wiring harness is routed incorrectly, the wiring harness may contact the door glass when opening/closing the door glass, causing damage to the wiring harness. When routing the wiring harness, route it through the back side of the glass guide.

Courtesy of MAZDA MOTORS CORP.
