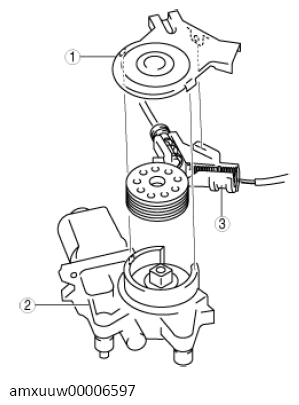

Power Window Regulator Disassembly/Assembly: Notes
- Disassemble in the order indicated in the table.
 Courtesy of MAZDA MOTORS CORP.
|
COMPONENT DESCRIPTION
| 1 |
Cover
(See Cover Removal Note .) |
| 2 |
Power window motor |
| 3 |
Regulator |
- Assemble in the reverse order of disassembly.
CAUTION:
- When installing the power window motor, be careful that the cable does not unwind from the drum.
