Exhaust CMP Sensor

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front suspension tower bar (joint). (Vehicles with front suspension tower bar) (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION .)
  3. Disconnect the exhaust CMP sensor connector.
  4. Remove the bolt.

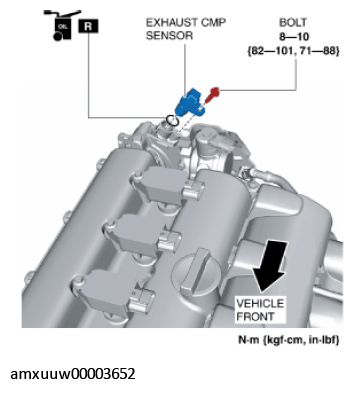

    Fig 1: Exhaust Camshaft Position Sensor Bolt With Torque Specification
    G11274155Courtesy of MAZDA MOTORS CORP.
  5. Remove the exhaust CMP sensor.
  6. Install in the reverse order of removal.
