Engine Compartment Side

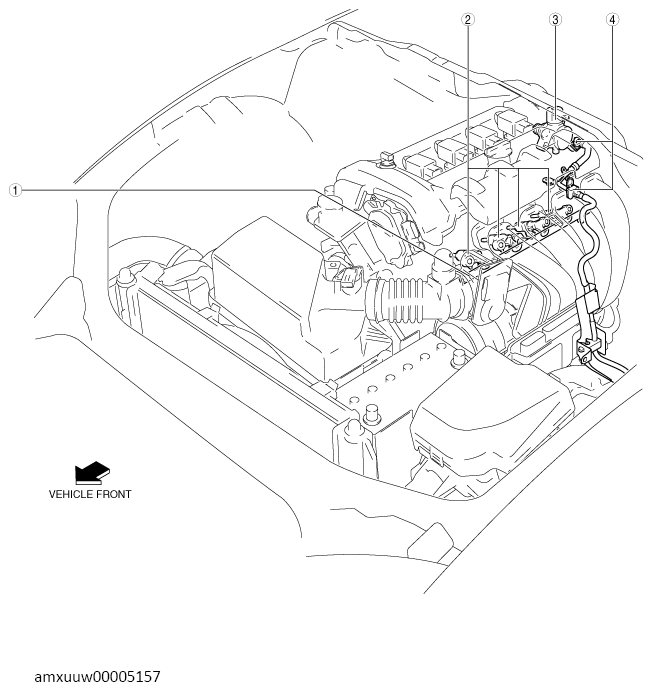

COMPONENT DESCRIPTION
| 1 | Fuel distributor (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) |
| 2 | Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) (See FUEL INJECTOR INSPECTION [SKYACTIV-G 2.0] .) |
| 3 | High pressure fuel pump (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) (See HIGH PRESSURE FUEL PUMP INSPECTION [SKYACTIV-G 2.0] .) |
| 4 | Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) |
