DTC B1DA9-2B: Retractable Hardtop Switch Circuit Malfunction [Retractable Hardtop Control Module]: Notes
DTC B1DA9:2B (RETRACTABLE HARDTOP CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Retractable hardtop switch circuit malfunction |
| Detection condition |
- The retractable hardtop control module detects that the retractable hardtop switch is in the ON or OFF condition for 30 s.
|
| Fail-safe |
- Stops retractable hardtop operation
|
| Possible cause |

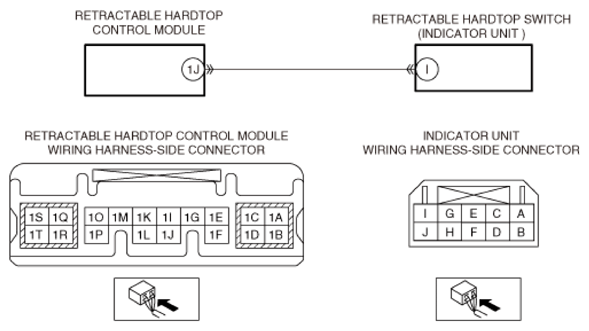

- Short to ground in wiring harness between retractable hardtop control module terminal 1J and indicator unit terminal I
- Indicator unit malfunction
- Retractable hardtop control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
