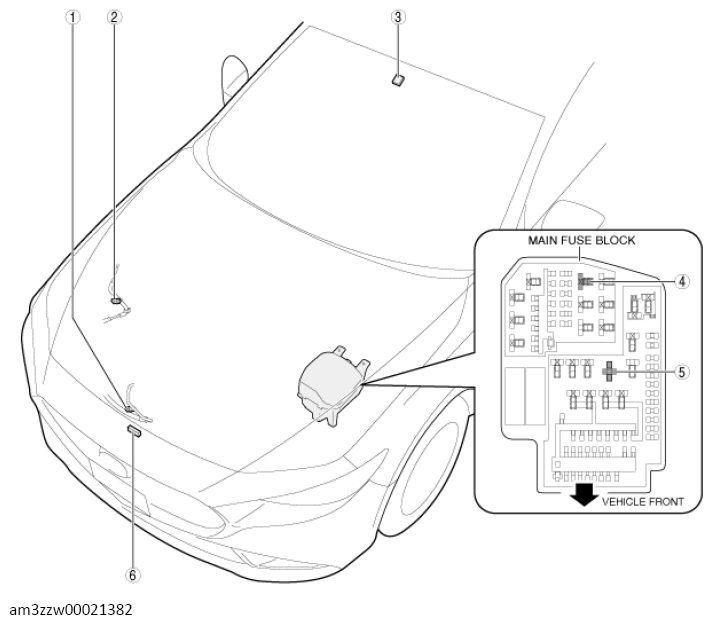

Structural View (Exterior)

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Refrigerant pressure sensor No. 2 (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) (US) .) (See REFRIGERANT PRESSURE SENSOR INSPECTION (AUTO A/C) (US) .)
2	Refrigerant pressure sensor No. 1 (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) (US) .) (See REFRIGERANT PRESSURE SENSOR INSPECTION (AUTO A/C) (US) .)
3	Solar radiation sensor/humidity sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION (AUTO A/C) .) (See SOLAR RADIATION SENSOR INSPECTION (AUTO A/C) .) (See HUMIDITY SENSOR REMOVAL/INSTALLATION (AUTO A/C) .)
4	A/C relay (See RELAY LOCATION (US) .) (See RELAY INSPECTION .)
5	Blower relay (See RELAY LOCATION (US) .) (See RELAY INSPECTION .)
6	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) .) (See AMBIENT TEMPERATURE SENSOR INSPECTION (AUTO A/C) .)
