Thrust washer Assembly Note
WARNING: This page is about a different variant/trim than selected.
- Assemble the side gears, thrust washers and pinion gears to the gear case, then assemble the knock pin.
- After assembling the knock pin, make a crimp so that the pin will not come out of the gear case.

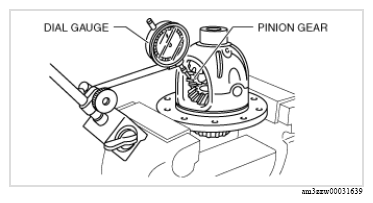

- Set a dial gauge to the pinion gear as indicated in the figure.
- Secure one of the side gears.
- Move the pinion gear and measure the backlash at the end of the pinion gear.
- If the backlash exceeds the standard, use the thrust washers to adjust.
Rear differential backlash of pinion gear and side gear
0.1 mm {0.004 in} or less
THRUST WASHER THICKNESS SPECIFICATIONIdentification mark Thickness 9 0.90 mm {0.035 in} 95 0.95 mm {0.037 in} 0 1.00 mm {0.0394 in} 05 1.05 mm {0.0413 in} 1 1.10 mm {0.0433 in}
