Intermediate Shaft Removal/Installation: Notes

WARNING:

The steering column (EPS motor) temperature increases directly after continuous turning of the steering mechanism which could cause burns if it is touched. Before performing any servicing, verify that the steering column has cooled off.

Rotate the steering wheel until the joint bolt on the steering column side and steering gear side reaches the removal position.
CAUTION:
- Secure the steering wheel using tape or a cable to prevent the steering shaft from rotating after disconnecting the intermediate shaft. If the steering wheel rotates after the steering shaft and the steering gear and linkage are disconnected, the internal parts of the clock spring could be damaged.

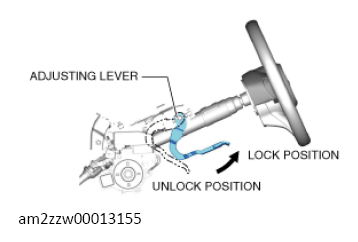

Lock the adjusting lever.

Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.
Install in the reverse order of removal.

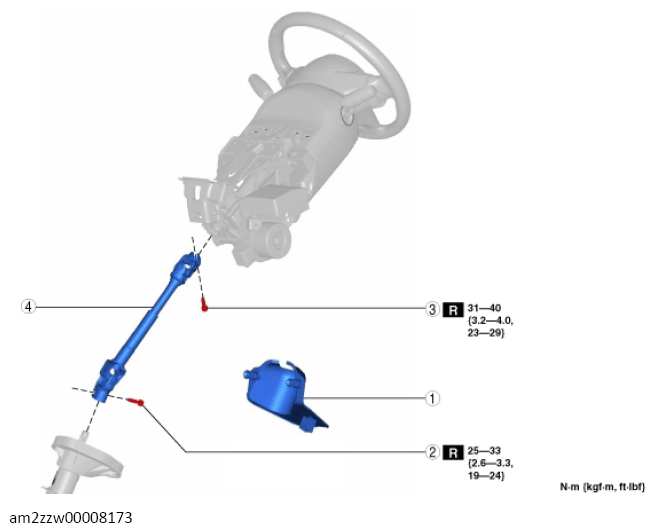

Fig 1: Intermediate Shaft Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Joint cover
2	Joint bolt A
3	Joint bolt B
4	Intermediate shaft (See Intermediate Shaft Removal Note .) (See Intermediate Shaft Installation Note .)
