DTC P064A-00: Fuel Pump Control Module - Correlation Problem: Outline
DTC P064A-00: (PCM, SKYACTIV-G, US) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Fuel pump control module: correlation problem |
| Detection condition |
- The difference between the rotation speed commanded by the fuel pump control module and the fuel pump unit motor speed exceeds the specification.
- When the fuel pump unit motor starts, the fuel pump control module cannot detect the induced voltage for the specified time.
|
| Fail-safe |
|
| Possible cause |
- Fuel pump unit connector or terminals malfunction
- Fuel pump unit malfunction
- Fuel pump control module connector or terminals malfunction

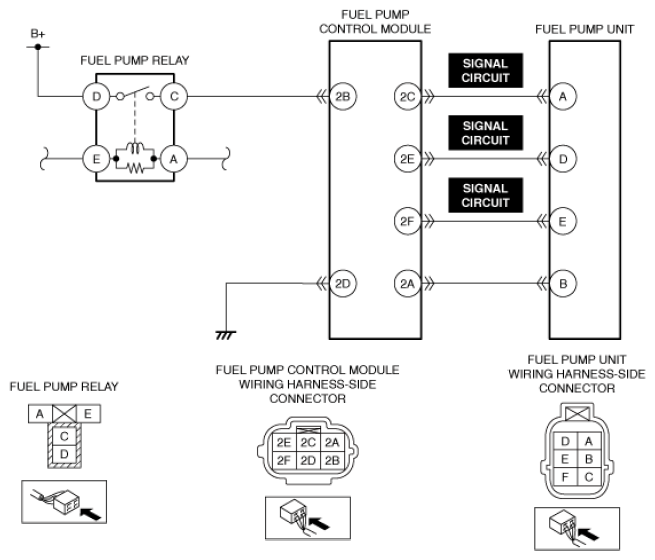

- Short to power supply in fuel pump unit signal circuit
- Fuel pump control module malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
