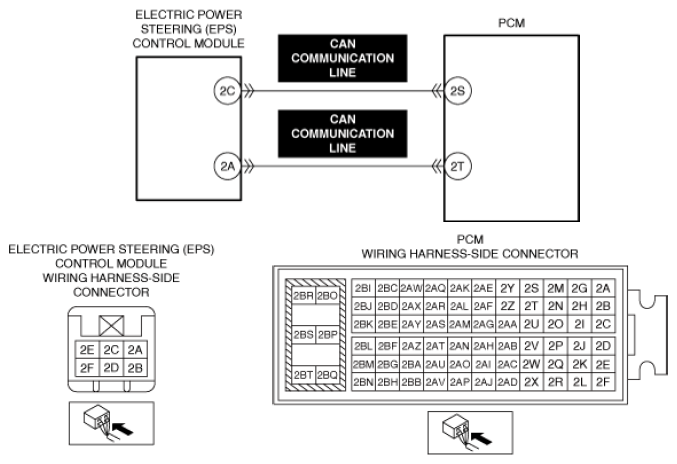

DTC U0320-00: Electric Power Steering (EPS) Control Module Error: Outline
DTC U0320-00: (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
c |
| Detection condition |
- When any of the following conditions is met:
- CAN communication line malfunction between Electric Power Steering (EPS) control module and PCM
- Electric Power Steering (EPS) control module internal malfunction
|
| Fail-safe |
|
| Possible cause |
- CAN drive error (Electric Power Steering (EPS) control module or PCM)
- CAN communication line malfunction between Electric Power Steering (EPS) control module and PCM
- Electric Power Steering (EPS) control module connector or terminals malfunction
- PCM connector or terminals malfunction
- Electric Power Steering (EPS) control module malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
